400℉/204℃ EPDM/LEAD Flat Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for

installed down well in the oil industry.

Standard

IEEE Std. 1018 API RP 11S5 API RP 11S6

Construction

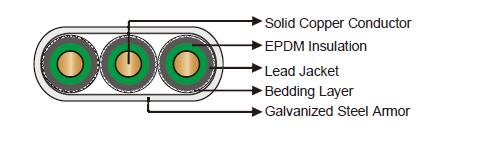

400℉/204℃ EPDM/LEAD Flat Electrical Submersible Pump Cable

Conductor: Solid copper conductor.

Insulation: EPDM insulation.

Jacket: Lead jacket. Each insulated conductor should have a lead sheath extruded over the insulation.

Bedding Layer: Bedding tape.

Armor: Galvanized steel.

Dimensions and Weight

5KV

Cable Type

Conductor
Size

Conductor
O.D.

Insulation
Thickness

Overall O.D.

Approx.
Weight



AWG

mm²

mm

Inches

mm

Inches

mm

kg/km

QYEQ-204-5KV-3G2

2

33.62

6.54±0.07

0.07

1.9

0.63 x 1.67

16.0 x 42.5

3100

Electrical Data

Voltage

KV AC

5

Minimum Insulation Resistance (15.6℃)

MΩ·km

1294

Maximum DC Current Unbalance

%

2

Maximum DC Leakage (15.6℃)

μA/(KV·km)

0.77

Maximum DC Conductor Resistant

Ω/km

0.522

DC 35KV/5min



No breakdown

Mechanical Data

Temperature Rated

204

Minimum Bending Radius

mm

320
